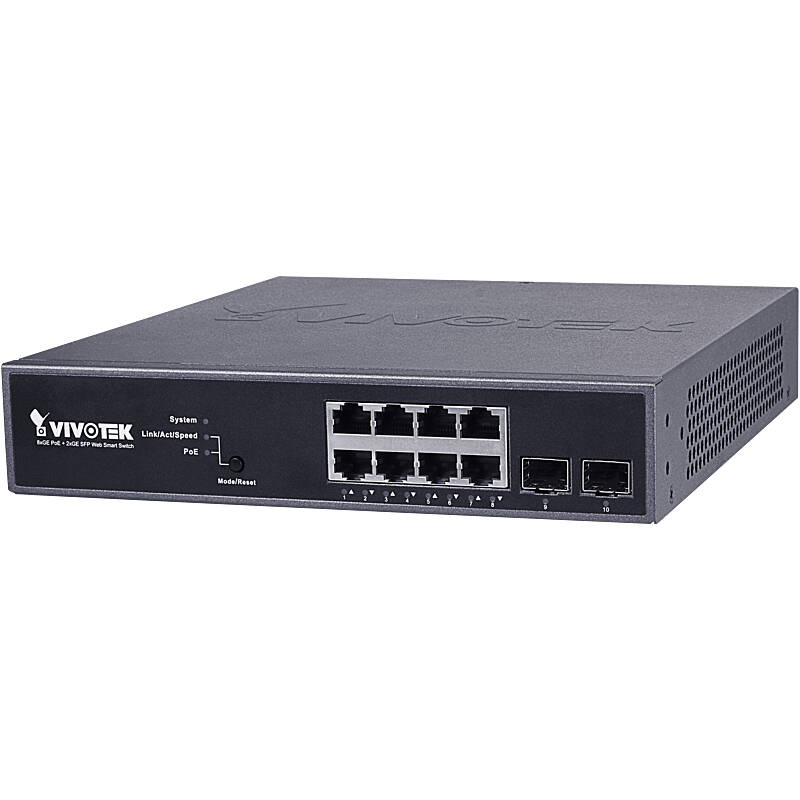

VIVOTEK AW-GEV-104B-130 PoE Switch

• Model: AW-GEV-104B-130
• Product Description:
• 8xGE PoE + 2xGE SFP
• VivoCam Web
• Smart Managed PoE Switch

Port Configuration

• 10M/100M/1G RJ45 Port: 8
• 100M/1G SFP Port: 2
• Total Ports: 10
• Auto MDI/MDI-X: V
• IEEE 802.3x: V
• IEEE 802.3u: V
• IEEE 802.3z: V
• IEEE 802.3ab: V

HW Performance

• Switching Bandwidth 20Gbps 36Gbps 52Gbps
• Buffer Memory 4.1Mb 4.1Mb 4.1Mb
• MAC Address 8K 8K 8K
• Jumbo Frames 10000 Bytes 10000 Bytes 10000 Bytes

Managing IP Surveillance Functions

• Management:
• Auto Search VIVOTEK Device: up to 256 pcs
• Surveillance Device Management List: V
• DHCP Server Function: V
• VIVOTEK Device Account/Password Setting: V
• VIVOTEK Device Static IP Setting: V
• VIVOTEK Device Grouping Setting for VLAN: V
• VIVOTEK Device Name Edit: V
• VIVOTEK Camera/Video Server Reboot/Restore Default: V
• VIVOTEK Device Re-direct Link: V
• VIVOTEK Device On/Off Line Status: V V V
• E-Map View:
• Topology View: V
• Floor View: V
• Google Map View: V
• Maintenance:
• VIVOTEK Camera/Video Server Configuration File Export/Import: V
• VIVOTEK Cameras/Video Server Configuration File Management: V
• Floor Image Management: V
• Export Surveillance Management Device List: V
• Security: V
• Trouble Shooting: V
• Traffic Monitoring: V

Web Smart Managed Functions

• Spanning Tree:
• IEEE802.1D (STP): V
• IEEE802.1w (RSTP): V
• IEEE802.1s (MSTP): V
• IEEE802.1d (LACP): V
• Trunking:
• Static Aggregation: V
• VLAN:
• 802.1Q Tag-based VLAN: 4096 VLAN IDs
• Port-based VLAN: V
• Private VLAN Edge (PVE): V
• GARP VLAN: V
• Q-in-Q (Double Tag): V
• Protocol-based VLAN: V
• MAC-based VLAN: V
• Voice VLAN: V
• IP Subnet-based VLAN: V
• Multicast VLAN Registration (MVR): V
• IGMP Snooping (v1/v2/v3): V
• DHCP Relay: V
• MLD v1/v2 Snooping: V

QoS Functions

• Hardware Queues: 8
• Classification:
• Port Based: V
• 802.1p: V
• Rate Limiting:
• Ingress: V
• Egress: V
• Per Port: V
• Priority Queue Scheduling:
• WRR: V
• DSCP & Class of Service: V

Security

• IEEE802.1x:
• RADIUS Authntication: V
• IGMP-RADIUS Based: V
• Secure Sockets Layer (SSL): V
• Port Security: V
• IP Source Guard: V
• Storm Control: V
• Layer 2 Isolation Private VLAN Edge (PVE): V
• RADIUS/TACACS+: V
• Loop Detection: V
• DHCP Snooping: V

Management

• SNMP (v1, v2c, v3): V
• RMON (1,2,3 & 9 groups): V
• DHCP Server & Client: V
• Port Mirroring: V
• UPnP: V
• LLDP (IEEE802.1ab): V
• LLDP-MED: V
• S-Flow: V
• Firmware Upgrade: V
• NTP: V
• TFTP: V

PoE Management

• PoE On/Off Control: V
• PoE Alive Checking for PD: V
• PoE Scheduling: V
• Power Delay: V

PoE Functions

• IEEE 802.3af/at PoE Standard Compliant: V
• Number of PoE Output Port: 8
• PoE output Power: Per Port 54VDC, Max. 30W
• Totoal PoE Power Budget: 130W
• PoE Pin Assignment: 1/2(+), 3/6(-)
• Surge Protection: Per PoE Port 6KV

Environmental Specifications

• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
• Operating Humidity: 10 ~ 90% RH

Mechanical Specifications

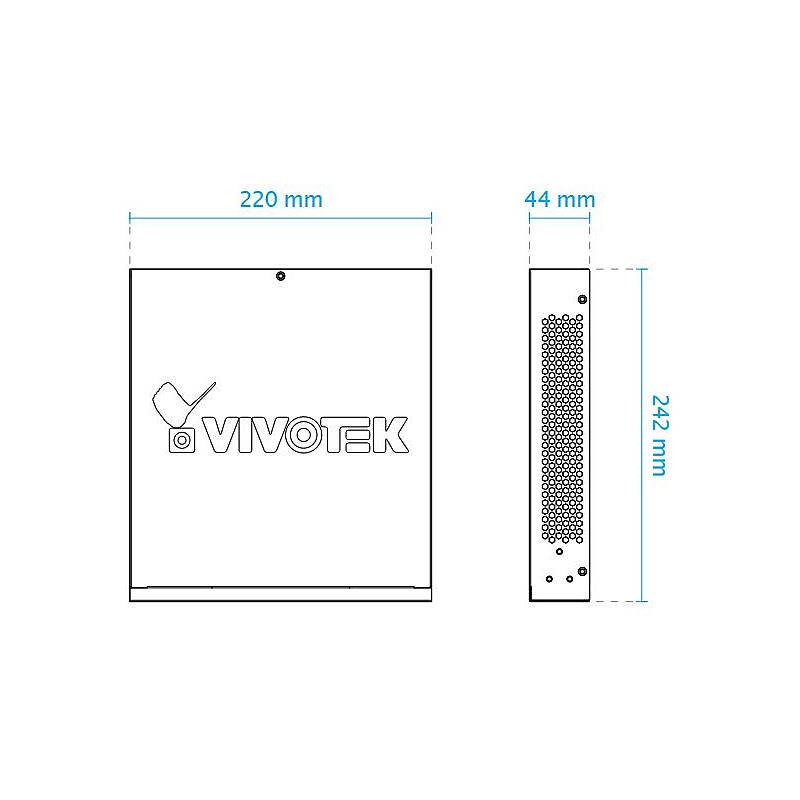

• Dimensions: 220 (W) x 44 (H) x 242 (D) mm
• Weight: 1.95 kg

Power Source

• AC Input: 100V ~ 240V
• Frequency: 50 ~ 60 Hz
• Power Consumption: 150W

Certifications

• Certifications: FCC, LVD, VCCI, C-Tick

Accessories

• Included Accessories: Power Cord, QIG, CD, Manual, Rack Mount Kit
