VIVOTEK C-SERIE FD9388-HTV Fixed Dome Kamera, 5MP, Outdoor, IR, 2,8-12mm, IP66

System Information

• Model: FD9388-HTV
• CPU: Multimedia SoC (Sy stem-on-Chip)
• Flash: 128 MB
• RAM: 512 MB

Camera Features

• Image Sensor: 1/2.7" Progressiv e CMOS
• Max. Resolution: 2560x1920 (5MP)
• Lens Type: Motorized, Vari-f ocal, Remote Focus
• Focal Length: f = 2.8 ~ 12 mm
• Aperture: F1.4 ~ F2.8
• Iris Type: Fixed iris
• Field of View:
• 90° ~ 30° (Horizontal)
• 65° ~ 23° (Vertical)
• 115° ~ 38°(Diagonal)
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day/Night: Yes
• Removable IR-cut: Filter Yes
• IR Illuminators: Built-in IR illuminators, ef f ectiv e up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination:
• 0.035 lux @ F1.4 (Color)
• <0.005 lux @ F1.4 (B/W)
• 0 lux with IR illumination on
• Pan Range: 353°
• Tilt Range: 75°
• Rotation Range: 350°
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
• Built-in Installation Aids: Remote focus, remote zoom

Video

• Video Compression: H.265, H.264, MJPEG
• Maximum Frame Rate: 20 f ps @ 2560x1920
• Maximum Streams: 3 video streams (Up to 8 conf igurable prof iles)
• S/N Ratio: 61 dB
• Dynamic Range: 120 dB
• Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings:
• General settings: video title and time stamp ov erlay, v ideo orientation (f lip, mirror, rotation), day /night settings
• Illuminators: illuminators, anti-ov erexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
• Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
• Privacy mask; Scheduled profile settings

Audio

• Audio Capability: One-way Audio
• Audio Compression: G.711, G.726
• Audio Interface: Built-in microphone
• Effective Range: 5 meters

Network

• Users: Live viewing f or up to 10 clients
• Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute f orce attack ev ent, cy berattack ev ent, quarantine ev ent), user access log, user account management
• Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface:
• 10 Base-T/100 Base-TX Ethernet (RJ-45)
• *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF: Prof ile G, S, T supported, specif ication av ailable at www.onv if .org

Solution Integration

• Video Motion Detection: Fiv e-window v ideo motion detection
• VADP Package: Stratocast, Trend Micro IoT Security (1-y ear f ree trial), VIVOCloud

Alarm and Event

• Event Trigger: Audio detection, camera tampering detection, cy bersecurity ev ents (brute f orce attack event, cyberattack ev ent, quarantine ev ent), manual trigger, motion detection, periodical trigger, recording notif ication, SD card lif e expectancy, sy stem boot
• Event Action: Event notif ication v ia email, HTTP, FTP, NAS serv er, SD card, push notif ication File upload via email, HTTP, FTP, NAS serv er, SD card

General

• Connectors: RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
• LED Indicator: System power and status indicator
• Power Input: IEEE 802.3af PoE Class 0
• Power Consumption: Max. 12.95 W/9 W (IR on/of f )

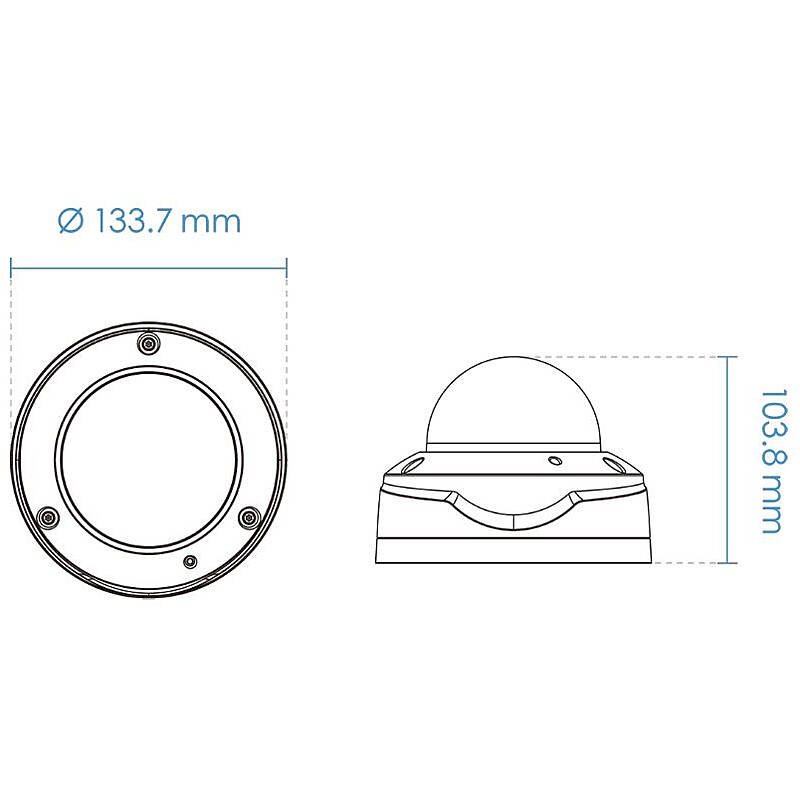

• Dimensions: ø 133.7 x 103.8 mm
• Weight: 819 g
• Certifications: EMC: FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Saf ety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Env ironment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
• Operating Temperature:
• Starting Temperature:-10°C ~ 60°C (14°F ~ 140°F)
• Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Humidity: 90%

System Requirements

• Operating System:
• Microsoft Windows 10/8/7
• Mac 10.12 (Chrome only)
• Web Browser:
• Chrome 58.0 or abov e
• Internet Explorer 10/11
• Other Players: VLC: 1.1.11 or abov e

Included Accessories

• Packing Contents: Quick installation guide, alignment sticker, screw pack, cable gland
