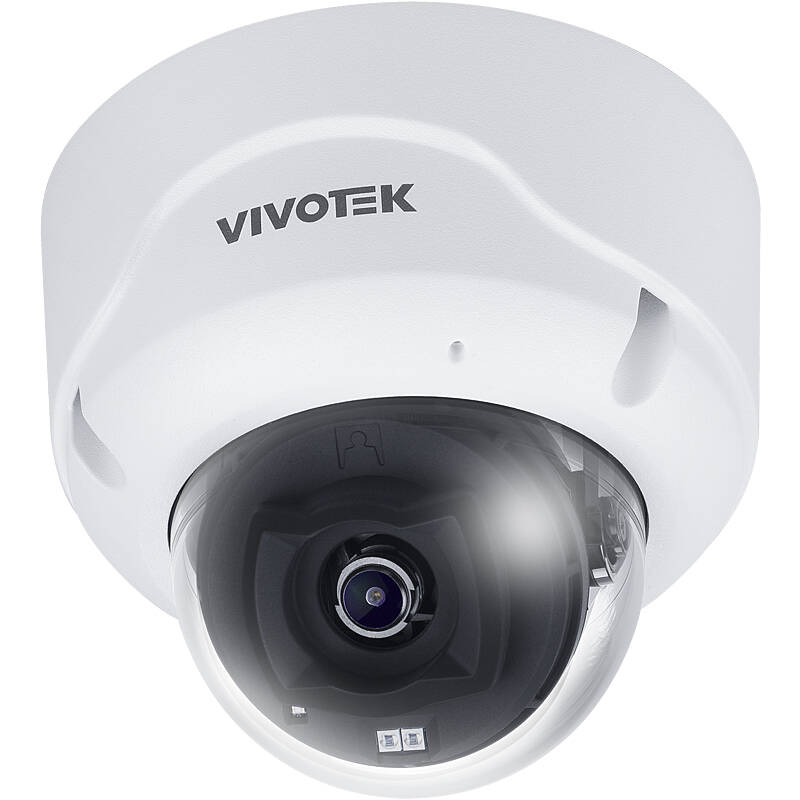

VIVOTEK V-SERIE FD9389-EHV-V3 5MP 30fps, H.265, 2MP 60fps, 2.8~12mm, IR, WDR

System Information

• CPU: Multimedia SoC (System-on-Chip)
• Flash: 8 GB
• RAM: 2 GB

Camera Specifications

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 2560x1920 (5MP)
• Lens Type: Fixed-focal
• Focal Length: f = 2.8 mm
• Aperture: F2.0
• Iris Type: Fixed iris
• Field of View:
• 103.4° (Horizontal)
• 75.3° (Vertical)
• 135.2° (Diagonal)
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day/Night: Yes
• Removable IR-cut filter: Yes
• Illuminators: Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
• Minimum Illumination:
• 0.055 lux @ F2.0 (Color)
• 0.005 lux @ F2.0 (B/W)
• 0 lux with IR illumination on
• Pan Range: 350°
• Tilt Range: 80°
• Rotation Range: 350°
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
• Built-in Installation Aids: Pixel calculator

Video

• Compression: H.265, H.264, MJPEG
• Maximum Frame Rate: 30 fps @ 2560x1920 (5MP)
• Maximum Streams: 3 video streams (Up to 8 configurable profiles)
• Main Stream:
• 30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)
• 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
• 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
• 3rd Stream:
• 30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3);
• 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
• 60 fps @ 1280x720, 640x360 (16:9)
• 2nd Stream:
• 30fps @ 1280x960, 800x600, 640x480 (4:3);
• 30 fps @ 1280x720, 640x360 (16:9);
• 60 fps @ 1280x720, 640x360 (16:9)
• S/N Ratio: 55 dB
• Dynamic Range: 120 dB
• Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings:
• General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
• Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III
• Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
• Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
• Focus: zoom, focus
• Privacy mask; pixel calculator; Scheduled profile settings

Audio

• Audio Capability: Two-way audio (Full duplex)*
  * Requires AO-015 cable
• Compression: G.711, G.726, MPEG-2 AAC-LC
• Interface:
• Built-in microphone
• External microphone Input*
• External line output*
  * Requires AO-015 cable
• Effective Range: 5 meters

Network

• Users: Live viewing for up to 10 clients

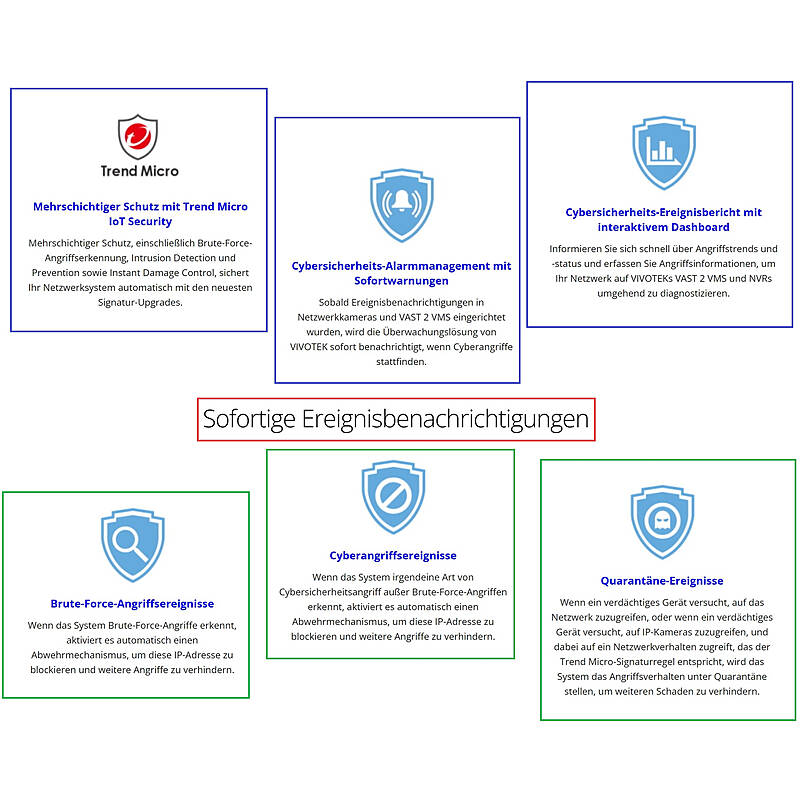

• Security: Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)
• Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
• Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
  *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF: Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

• Compute Capability: SoC with built-in hardware deep learning accelerator
• Vision Object Analytics:
• Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
• Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
• Re-Search Extraction; Path Extraction
• Application:
• Deep Learning VCA (Smart Motion Detection, Smart VCA)
• Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
• Application available with license:
• Running detection, Parking Violation Detection, Restricted Zone Detection
• Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
• RealSight Engine: Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

• VADP Package: Trend Micro (Default, 3-year free trial)
• Video modtion detection: Motion Detection (Five-window video motion detection)

Alarm and Event

• Event Trigger: Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  * Requires AO-015 cable
• Event Action: Event notification via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card, File upload via email, HTTP, FTP/SFTP, NAS server, SD card
  *Requires AO-015 cable

General

• Connectors:
• RJ-45 cable connector for 10/100 Mbps Network/PoE connection
• Audio line input*
• Audio line output*
• Digital input: 1*
• Digital output: 1*
  * Requires AO-015 cable
• LED Indicator: System power and status indicator
• Power Input: IEEE 802.3af PoE Class 3
• Power Consumption: Max. 12.4W/ 9.6W (IR on/off)

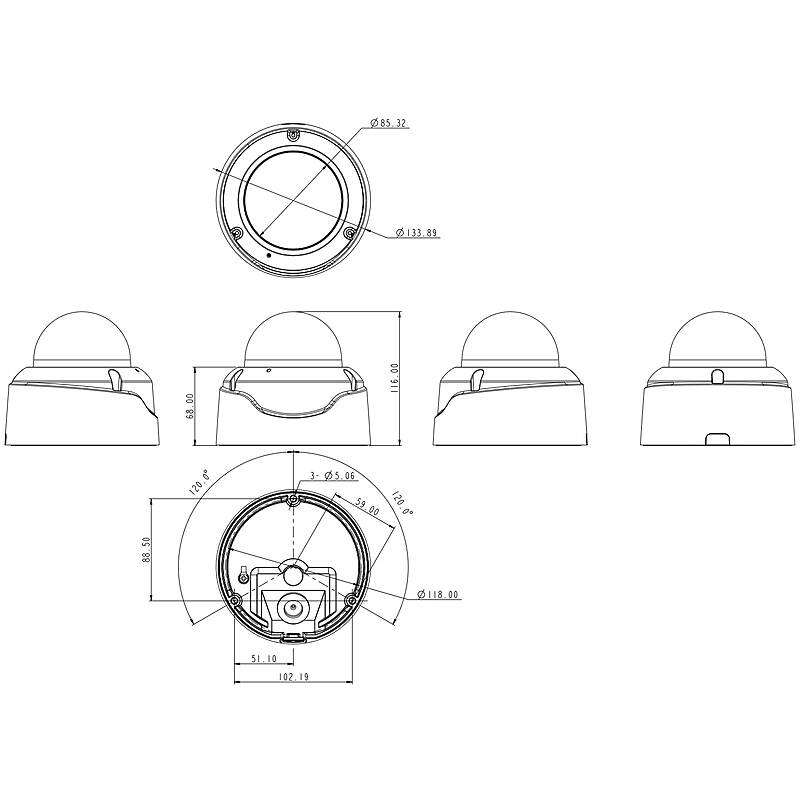

• Dimensions: ø 134 x 116 mm
• Weight: 960 g
• Certifications: EMC: UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A); IC (ICES-003 Issue 7, Class A) Safety UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471); UKCA (BS EN IEC 62368-1) Environment NEMA (NEMA 250 Type 4X), IK10 (IEC 62262), IP66 (IEC 60529); IA BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
• Operating Temperature:
• Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Working Temperature:
• -35°C ~ 60°C (-31°F ~ 140°F) (IR off)
• -35°C ~ 50°C (-31°F ~ 122°F) (IR on)
• Humidity: 98% RH (non-condensing)

System Requirements

• Operating System:
• Microsoft Windows 10/8/7
• Mac 10.12 (Chrome only)
• Web Browser: Chrome 58.0 or above
• Other Players: VLC: 1.1.11 or above

Included Accessories

• Packing Contents: Quick installation guide, alignment sticker, screw pack, L-shaped wrench

DORI (EN 62676-4 Standard)

• Detection (25PPM/ 8PPF): 60.4 m (198.1 ft)
• Observation (63PPM/ 19PPF): 24.1 m (79.2 ft)
• Recognition (125PPM/ 38PPF): 12 m (39.5 ft)
• Identification (250PPM/ 76PPF): 6.0 m (19.6 ft)
