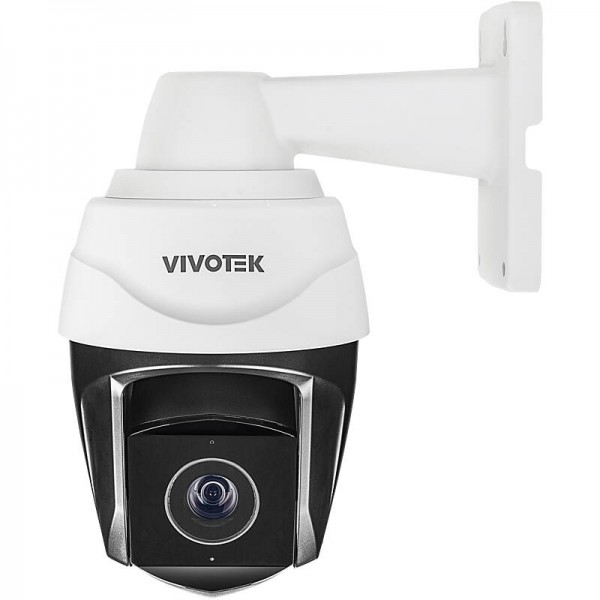

VIVOTEK SD9363-EHL-v2 Speed Dome IP Kamera 2MP, Outdoor, 20x opt. Zoom, IR, IP66/IK10

System Information

• Model: SD9368-EHL
• CPU: Multimedia SoC (System-on-Chip)
• Flash: 8 GB
• RAM: 2 GB

Camera Features

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 1920x1080 (2MP)
• Lens Type: 40x Optical Zoom, Auto Focus
• Focal Length: f = 4.25 ~ 170 mm
• Aperture: F1.6 ~ F4.95
• Iris Type: DC-iris
• Field of View:
• 65.70° ~ 1.88° (Horizontal)
• 39.39° ~ 1.09° (Vertical)
• 73.03° ~2.13° (Diagonal)
• Shutter Time: 1 sec. to 1/100,000 sec.
• WDR Technology: WDR Pro
• Day /Night: Yes
• Remov able IR-cut Filter: Yes
• IR Illuminators: Built-in IR Illuminators up to 250 meters with Smart IR, IR LED*8
• Minimum Illumination:
• 0.04 lux @ F1.6 (Color)
• 0.005 lux @ F1.6 (B/W)
• 0 lux with IR illumination on
• Pan Speed: Preset speed: 450°/s
• Pan Range: 360° endless
• Tilt Speed: Preset speed: 450°/s
• Tilt Range: -20° to 90° (auto f lip)
• Preset Locations: 256 preset locations
• Pan/Tilt/Zoom Functionalities:
• 32x digital zoom (4x on IE plug-in, 8x built in)
• Auto Pan mode
• Auto Patrol mode
• Mechanical Auto f lip
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
• Built-in Installation Aids: Remote f ocus, remote zoom

Video

• Video Compression: H.265, H.264, MJPEG
• Maximum Frame Rate: 60 f ps @ 1920x1080
• Maximum Streams: 3 v ideo streams (Up to 8 conf igurable prof iles)
• S/N Ratio: 60 dB
• Dynamic Range: 120 dB
• Video Streaming: Adjustable resolution, quality and constant bitrate control, Smart Stream III
• Image Settings:
• General settings: video title and time stamp overlay, video orientation (flip, mirror), day /night settings
• Illuminators: illuminators, anti-ov erexposure
• Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3DNR, EIS, scene mode (auto, deblur)
• Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
• Focus; Privacy mask; Scheduled profile settings; Pixel calculator

Audio

• Audio Capability: Two-way audio (Full duplex)
• Audio Compression: G.711, G.726
• Audio Interface:
• External line input
• External line output

Network

• Users: Live viewing f or up to 10 clients
• Security: Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot,
• signed f irmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
• Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface:
• 10 Base-T/100 Base-TX Ethernet (RJ-45)
• *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF: Prof ile G, S, T supported, specif ication av ailable at www.onv if .org

AI Analytics

• Compute Capability: Built-in CNN acceleration module
• Vision Object Analytics:
• Object Detection: people, vehicle (4-wheeled, 2-wheeled)
• Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcy cle, truck, color)
• Re-Search Extraction; Path Extraction
• Event Application: Smart Tracking Adv anced (intrusion, loitering, line crossing, face detection)
• Applications: Deep learning VCA (Smart tracking advanced)

Solution Integration

• VADP Package: Stratocast, Trend Micro IoT Security (3-y ear f ree trial)

Alarm and Event

• Event Trigger: Audio detection, camera tampering detection, cy bersecurity ev ents (brute f orce attack event, cyberattack ev ent, quarantine ev ent), digital input, manual trigger, motion detection, periodical trigger, recording notif ication, SD card lif e expectancy, smart tracking adv anced trigger, sy stem boot, preset reached
• Event Action: Event notif ication v ia audio clip, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS serv er, SD card; trigger track, trigger patrol, mov e to preset

General

• Connectors:
• RJ-45 cable connector f or 10/100 Mbps PoE network connection
• Audio line input
• Audio line output
• DC 48V power input
• AC 24V power input
• Digital input*2
• Digital output*1
• LED Indicator: Sy stem power and status indicator
• Power Input:
• AC 24V, DC 48V, IEEE 802.3 bt Class 6 PoE
• (Simultaneous Power Redundancy Supported)
• Power Consumption:
• PoE: Max. 51W/26W (IR on/off)
• DC 48V: Max. 51W/26W (IR on/off)
• AC 24V: Max. 51W/26W (IR on/off)
• Dimensions: 256 x 336 mm
• Weight: 7.1 kg
• Certifications: EMC: UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Saf ety : UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Env ironment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Ty pe 4X); IA: BIS (IS 13252), BSMI
• Operating Temperature:
• Starting Temperature:
• -40°C ~ 55°C (-40°F ~ 131°F)
• Working Temperature:
• -40°C ~ 60°C (-40°F ~ 140°F) (IR on)
• Humidity: 98% RH (non-condensing)

System Requirements

• Operating System:
• Microsoft Windows 10/8/7
• Mac 10.12 (Chrome only )
• Web Browser:
• Chrome 58.0 or above
• Internet Explorer 10/11
• Other Players: VLC: 1.1.11 or above

Included Accessories

• Packing Contents: Wall mount bracket, Quick installation guide, alignment sticker, screw pack, desiccant bag, waterproof accessory bag, conduit ring, terminal block

DORI (EN 62676-4 Standard)

• Detect (25PPM/ 8PPF):
• Wide: 61.1 m (200.4 ft)
• Tele: 2239 m (7345.7 ft)
• Observe (63PPM/ 19PPF):
• Wide: 24.2 m (79.5 ft)
• Tele: 888.5 m (2914.9 ft)
• Recognize (125PPM/ 38PPF):
• Wide: 12.2 m (40 ft)
• Tele: 447.8 m (1469.1 ft)
• Identif y (250PPM/ 76PPF):
• Wide: 6.1 m (20 ft)
• Tele: 223.9 m (734.5 ft)
