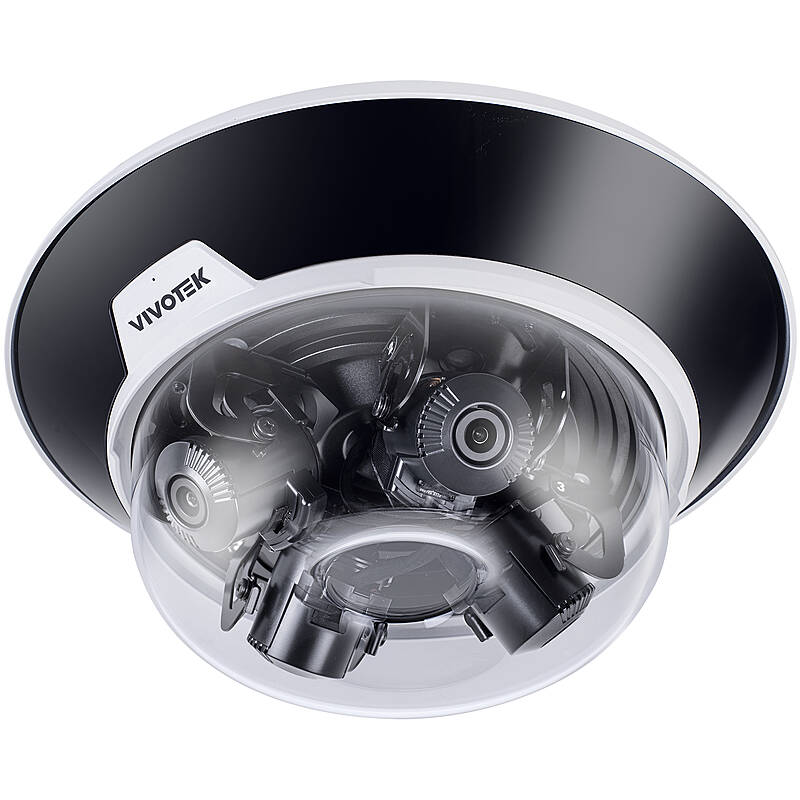

VIVOTEK SUPREME MA9322-EHTVL

System Information

• Model: MA9322-EHTVL
• CPU: Multimedia SoC (System-on-Chip)
• Flash: 1 GB
• RAM: 4 GB

Camera Features

• Image Sensor: 1/2.7" Progressiv e CMOS

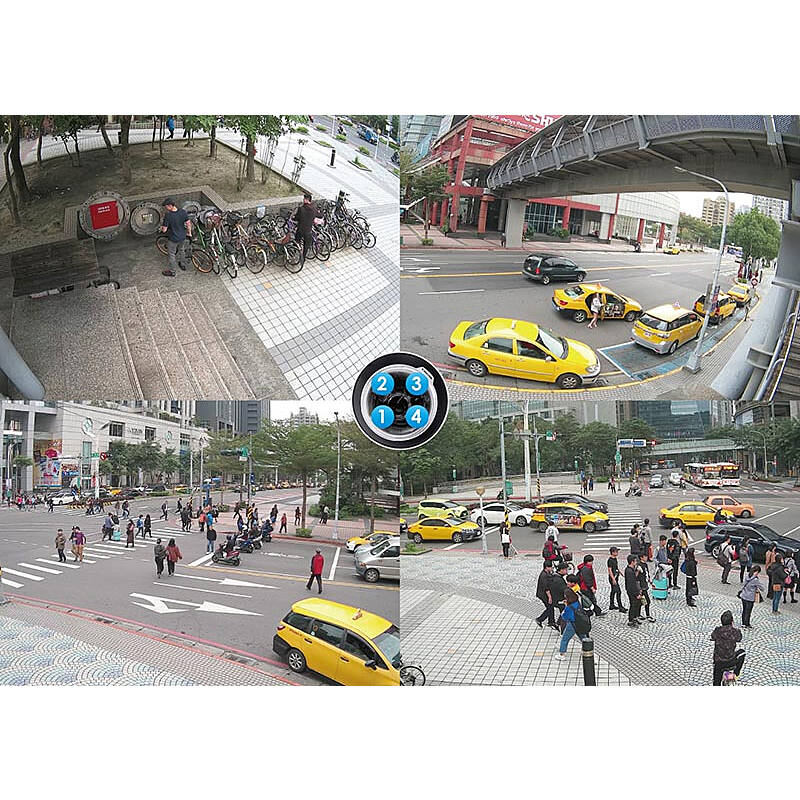

• Max. Resolution: 2688x1920 (5MP) x 4
• Lens Type: Motorized, Vari-Focal, Remote Focus
• Focal Length: f = 3.7 ~ 7.7 mm
• Aperture: F1.9 ~ F2.9
• Iris Type: Fixed-iris

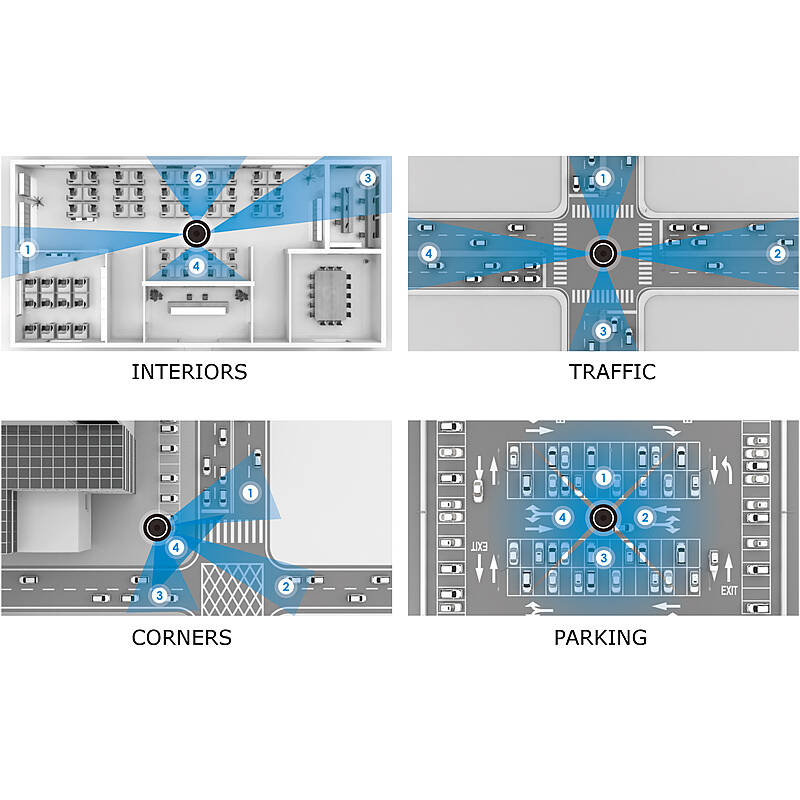

• Field of View:
• 88.6° ~ 40.1° (Horizontal)
• 61.2° ~ 28.6° (Vertical)
• 115.5° ~ 49.5° (Diagonal)
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day /Night: Yes
• Removable IR-cut Filter: Yes

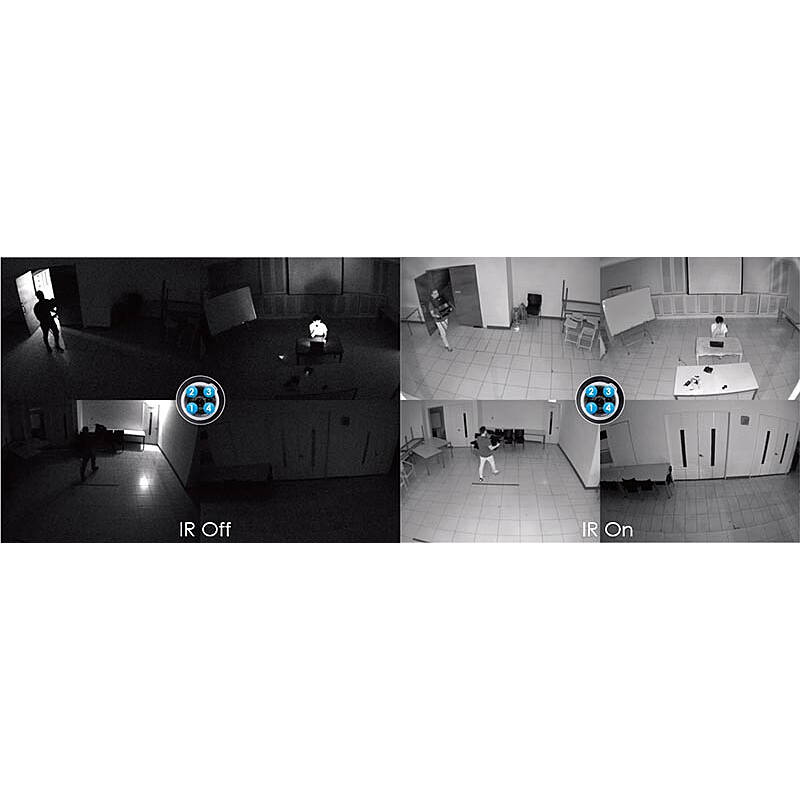

• IR Illuminators: Built-in IR illuminators, ef f ectiv e up to 30 meters with Smart IR
• Minimum Illumination:
• 0.035 lux @ F1.9 (Color)
• 0.005 lux @ F1.9 (B/W)
• 0 lux with IR Illuminators on
• Tilt Range: 0° ~ 105° each lens
• Rotation Range: ±90° each lens
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
• Built-in Installation Aids: Remote Focus, Remote Zoom

Video

• Video Compression: H.265, H.264, MJPEG
• Maximum Frame Rate:
• 12 fps @ (2688x1920) x 4
• 30 fps @ (2560x1440) x 4
• Maximum Streams:
• 2 simultaneous streams* per channel; max total 13 prof iles
• *Stream 1: 2688x1920, 2560x1920, 2160x1536, 2048x1536, 1680x1200, 1600x1200, 1344x960, 1280x960, 672x480, 640x480
• *Stream 2: 1280x960, 672x480, 640x480
• S/N Ratio: 60.4 dB
• Dy namic Range: 120 dB
• Video Streaming: Adjustable resolution, quality and constant bit rate control
• Image Settings:
• General settings: video title and time stamp ov erlay, video orientation (f lip, mirror), day /night settings
• Illuminators: illuminators, anti-ov erexposure
• Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM
• Exposure: BLC, HLC, exposure control (exposure lev el, iris adjustment, exposure time, gain control), AE speed adjustment
• WDR; Privacy mask; Scheduled profile settings

Audio

• Audio Capability: Two-way Audio (f ull duplex)
• Audio Compression: G.711, G.726
• Audio Interface:
• Built-in microphone
• External microphone input*
• External line output*
• *Requires AO-006 cable
• Effective Range: 5 meters

Network

• Users: Live viewing for up to 20 clients
• Security: Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, user access log, user account management
• Protocols: 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface:
• 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF: -

Solution Integration

• Video Motion Detection: Five-window v ideo motion detection

Alarm and Event

• Event Trigger: Audio detection*, camera tampering detection, digital input*, manual trigger, motion detection, periodical trigger, recording notif ication, SD card lif e expectancy, sy stem boot
  *Requires AO-006 cable
• Event Action: Event notif ication v ia audio clip*, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload v ia email, HTTP, FTP, NAS serv er, SD card
  *Requires AO-006 cable

General

• Connectors:
• RJ-45 cable connector f or 10/100/1000 Mbps PoE network connection
• Audio input*
• Audio output*
• AC 24V power input*
• Digital input*
• Digital output*
• *Requires AO-006 cable
• LED Indicator: System power and status indicator
• Power Input:
• AC 24V
• IEEE 802.3 at PoE
• Power Consumption:
• AC: Max. 25 W
• PoE: Max. 25 W
• Dimensions:
• Ø 267x114 mm (main body )
• Ø 275x118 mm (w/ bracket)
• Weight: 2.7 kg
• Certifications: EMC: FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); UKCA, ICES-003 issue 7; Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Ty pe 4X)
• Operating Temperature:
• Start Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
• Working temperature: -40°C ~ 50°C (-40°F ~ 122°F)
• Humidity: 90%

System Requirements

• Operating System:
• Microsof t Windows 10/8/7
• Mac 10.12 (Chrome only )
• Web Browser:
• Chrome 58.0 or abov e
• Internet Explorer 10/11
• Other Players: VLC: 1.1.11 or above

Included Accessories

• Packing Contents: Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack

DORI (EN 62676-4 Standard)

• Detect (25PPM/ 8PPF):
• Wide: 74.0 m (242.8 ft)
• Tele: 153.9 m (505.0 ft)
• Observe (63PPM/ 19PPF):
• Wide: 29.3 m (96.1 ft)
• Tele: 61.1 m (200.4 ft)
• Recognize (125PPM/ 38PPF):
• Wide: 14.8 m (48.6 ft)
• Tele: 30.8 m (101.0 ft)
• Identify (250PPM/ 76PPF):
• Wide: 7.4 m (24.3 ft)
• Tele: 15.4 m (50.5 ft)
